Kilotech Top Gun Platform Scale

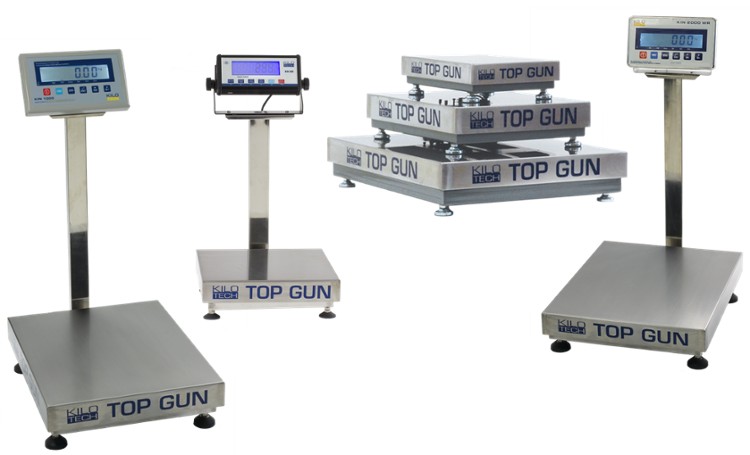

Kilotech Top Gun Platform Scale with stainless steel platter and weight display on a column

The Kilotech Top Gun Platform Scale lets you build the scale your counter or backroom actually needs. Choose a mild steel frame in the platter size that fits, from 12 × 12 inches up to 24 × 32 inches, then match it to the Kilotech weight display that suits the job. Capacities run from 6 kg up to 600 kg, so the same family covers a bench scale for portioning and a platform or floor scale for receiving.

Kilotech designs the Top Gun for restaurant, food processing, and industrial work, and you will find them in manufacturing, warehouses, and the back of the grocery store.

Restaurant and food service teams often use a Top Gun to check deliveries on receiving, such as potatoes, flour, and large bags of commodities, so short shipments are caught at the back door. Checkweighing with high, low, and target limits also helps kitchens keep portions consistent, where losing even half an ounce on each measurement adds up over time.

Features

  • Mix and match: mild steel frame in five platter sizes with capacities from 6 kg to 600 kg
  • Removable stainless steel platter for easy cleaning
  • Choice of weight display (indicator): ABS plastic KIN 1000, stainless steel KIN 2000WR, or KIN 500
  • Checkweighing with HI, LO, and target limits, with an alert tone
  • Accumulation function for totalling several weighings
  • Secondary counting function (counting is not Legal for Trade in Canada)
  • Choice of single or dual range
  • Predefined capacity settings to help prevent installation errors
  • Level indicator with adjustable, lockable anti-slip levelling feet
  • Selectable kg or lb
  • The displays run on an AC/DC adapter and rechargeable battery
  • Available Legal for Trade upon request

The Top Gun base is designed for dry areas with low humidity. The stainless steel KIN 2000WR display is water resistant to an IP-67 equivalent, but the mild steel frame is not a washdown base.

Top Gun sizes and capacities

ModelPlatter sizeCapacity × graduation (Canada)
KPL MS 1212-630.5 × 30.5 cm (12″ × 12″)6 kg × 0.002 kg / 12 lb × 0.005 lb
KPL MS 1212-1530.5 × 30.5 cm (12″ × 12″)15 kg × 0.005 kg / 30 lb × 0.01 lb
KPL MS 1212-3030.5 × 30.5 cm (12″ × 12″)30 kg × 0.01 kg / 60 lb × 0.02 lb
KPL MS 1218-6030.5 × 45.7 cm (12″ × 18″)60 kg × 0.02 kg / 120 lb × 0.05 lb
KPL MS 1218-15030.5 × 45.7 cm (12″ × 18″)150 kg × 0.05 kg / 300 lb × 0.1 lb
KPL MS 1818-15045.7 × 45.7 cm (18″ × 18″)150 kg × 0.05 kg / 300 lb × 0.1 lb
KPL MS 1824-15045.7 × 61 cm (18″ × 24″)150 kg × 0.05 kg / 300 lb × 0.1 lb
KPL MS 1824-30045.7 × 61 cm (18″ × 24″)300 kg × 0.1 kg / 600 lb × 0.2 lb
KPL MS 2432-30061 × 81 cm (24″ × 32″)300 kg × 0.1 kg / 600 lb × 0.2 lb
KPL MS 2432-60061 × 81 cm (24″ × 32″)600 kg × 0.2 kg / 1200 lb × 0.5 lb

Specifications

SpecificationTop Gun with KIN 1000Top Gun with KIN 2000WR
Indicator housingABS plasticStainless steel, water resistant (IP-67 equivalent)
DisplayHigh contrast LCD with auto backlight, 6 digitsHigh contrast LCD with auto backlight, 6 digits
Unitskg, lb, pcs (counting is not Legal for Trade in Canada)kg, lb, pcs (counting is not Legal for Trade in Canada)
Keys6 keys6 keys
CheckweighingHI, LO, and OK indication with alert tone; up to 2 set pointsHI, LO, and OK indication with alert tone; up to 2 set points
TareFull capacity, push button tareFull capacity, push button tare
PowerAC/DC adapter and rechargeable batteryAC/DC adapter and rechargeable battery
PlatterRemovable stainless steelRemovable stainless steel
FrameMild steelMild steel
Operating temperature (base)−10 °C to 40 °C (14 °F to 104 °F)−10 °C to 40 °C (14 °F to 104 °F)
Humidity (base)80% non-condensing80% non-condensing
Manufacturer warranty1 year (Kilotech)1 year (Kilotech)

Dual range is not available on Legal for Trade versions of the Top Gun platform. See the brochure for frame and column measurements. Specifications subject to change without notice.

Kilotech offers the Top Gun in Legal for Trade versions approved by Measurement Canada, and in versions that are not certified for trade use. If you will be selling by weight, tell us when you order. Armagh can help you choose the right Top Gun configuration and keep your scales in good working order for Measurement Canada requirements.
